Features & Benefits – WC & Frame
- Minimalist wall-hung toilet pan creates the illusion of space and enables easier cleaning
- Rear holes in toilet pan conceal AKW Bidet pipework for an enhanced cosmetic finish and reduction of hazards in the event of a trip or fall
- Rimless toilet pan with direct flushing technique offers improved hygiene by reducing the build-up of bacteria and making cleaning easier
- Rounded edges and corners reduce the risk of injury in the event of a trip or fall
- Toilet pan and frame can support up to 60st (400kg); bidet seat can support a maximum load of 23.5st (150kg)
- Concealed wall-hung frame and integrated cistern keeps unsightly pipework hidden for a more streamlined look
- Adjustable frame allows the pan to be installed at a user-specific height (from 820-1020mm)
- Dual flush plate offers full (6 litre) or reduced (4.5 litre) flush options for increased performance and water efficiency
- Contemporary design is compatible with Navlin and Navlin Doc M wash basins for a complete bathroom suite
- Components individually packaged in recyclable materials to prevent damage during transit
Technical Specification – WC & Frame
- BS EN 997 approved toilet pan for guaranteed flush performance
- Bottom inlet water connection to simplify pipework
- Horizontal outlet waste connection
- Geberit Kappa concealed cistern allows for toolfree mounting which is fully insulated against condensation
- Suitable for use in front of solid or dry wall construction
- Frame height: 820mm
- Self-supporting frame with C profile 40/40mm
- Supplied with relevant fixing kits as standard

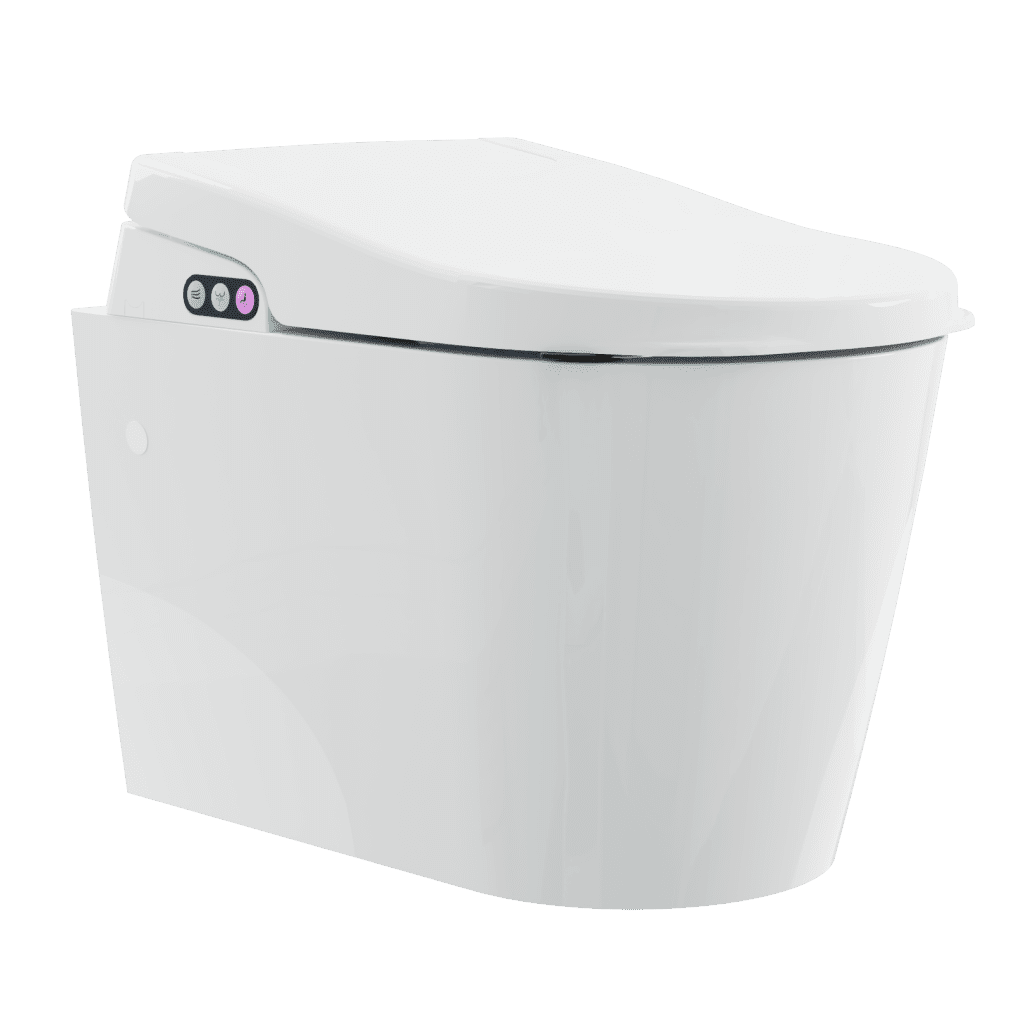

Features & Benefits – AKW Bidet
- Adjustable spray control offers thorough cleaning where and how it is needed
- Instantaneous 1750W water heater offers a steady flow with no reheating period in between washes, and a choice of temperature settings
- Powerful 350W dryer with settings that can be tailored to specific needs
- Remote control provides users with full function control via a handheld, ergonomic remote, which is easy to use and supports carers with maximising user dignity
- Self-cleaning function ensures the spray arm nozzle and surrounding area are hygienic
- Night light helps those with visual impairment or dementia locate the toilet in the dark or dimly lit conditions, helping to alleviate the risk of confusion
- Quiet and efficient operation promotes user dignity while providing a reliable experience
- Integral seat sensor prevents accidental usage by ensuring activation only occurs when the seat is in use
- Lid and seat lift assist with front moulded grips on the lid and contrasting side tabs for easy lifting, which are more hygienic and supports those with limited dexterity
- Quick-release seat and lid allows you to adapt the bidet for various care needs, and makes cleaning easier
- Soft-close seat and lid is slower, quieter, and therefore safer for users, especially children
- Seat lugs provide discreet stability when side transferring from a chair or commode
- Strong load limit of 23.5st (150kg) ensures the bidet is suitable for a wide variety of users
- Consilio seat features a large aperture ideal for care environments; Ergonomic seat option can be ordered separately
- Quick and easy for your plumber and/or electrician to install with no specialist tools or prior training required
- Bottom-entry water supply with plumbing concealed within pan
- Easy to clean, user-friendly design, which should require very little maintenance throughout the bidet’s lifetime
- Low-pressure mode ensures the bidet continues working efficiently during periods of low pressure
